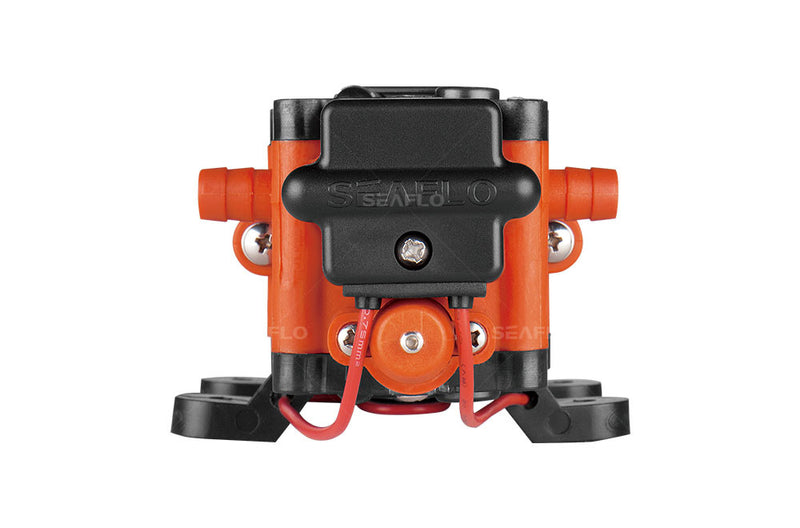

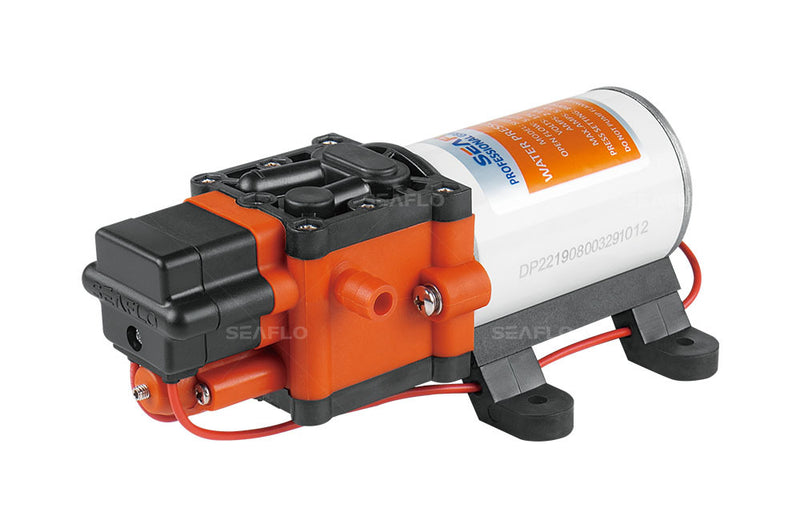

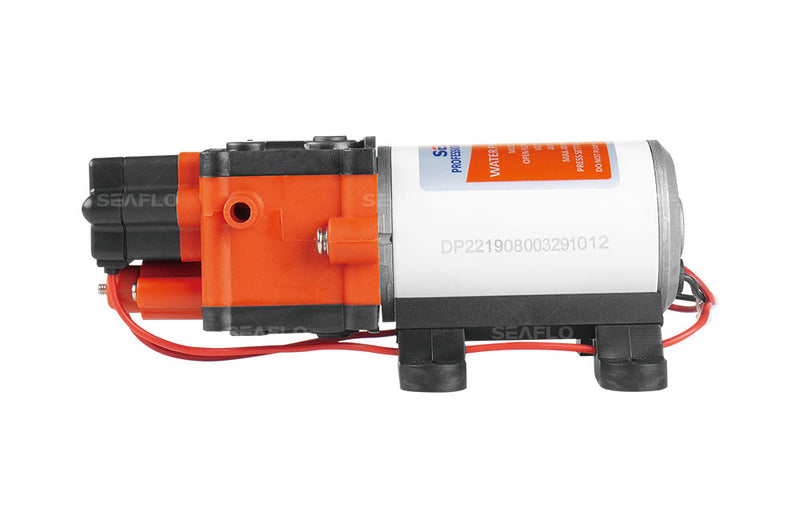

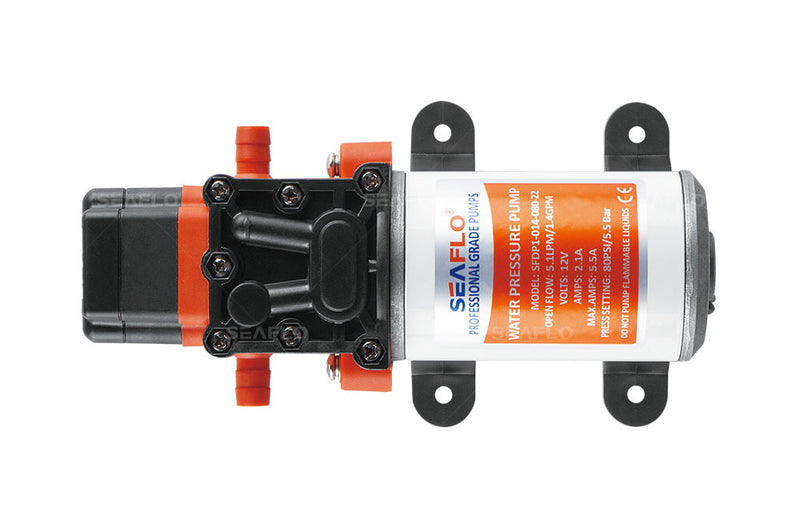

Seaflo 22 Series Freshwater Pump 24V 5LPM @ 100PSI I

The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration, and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm, and have an internal bypass feature that reduces pump cycling. It provides 5 litres per minute. Miniature multi-outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.

Features and Benefits

• 24V
• 2 chamber diaphragm pump
• Capable of supplying 1-2 fixtures
• Self-priming
• Run dry safe
• Adjustable pressure settings
• 18AWG,9.5" long Leads
• Ignition protected
• Industry-standard mounting pattern
• Meets or exceeds RoHS, SGS, and ISO standards
• 3 Year Warranty

Suitable for

• Yacht / RV / Caravan pressurised water system
• Sprayer fixtures (vehicle-mounted sprayers, electric sprayers)
• Cleaning machines, humidifier, water purification, medical apparatus
• Food beverage filling & liquid transfer
• Solar water system
• Any other pressurisation system

Dimensions

Pump

• Type 2 Chamber positive displacement diaphragm
  pump, self priming, capable of being run dry

• Control Type Pressure switch & By pass control

• Max Recommended Temperature 60° C (140° F)

• Priming Capabilities 6 feet (1.8 m) suction lift

• Re-start Pressure Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)

• Inlet/Outlet Ports 3/8" (10 mm) hose barb

• Weight 2.4 lbs (1.1 kg)
