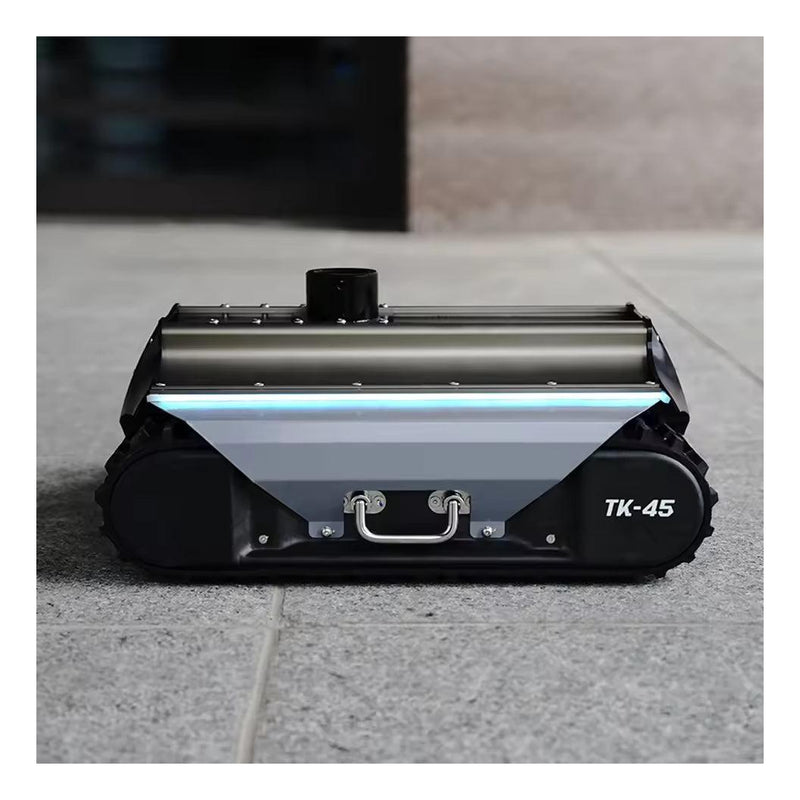

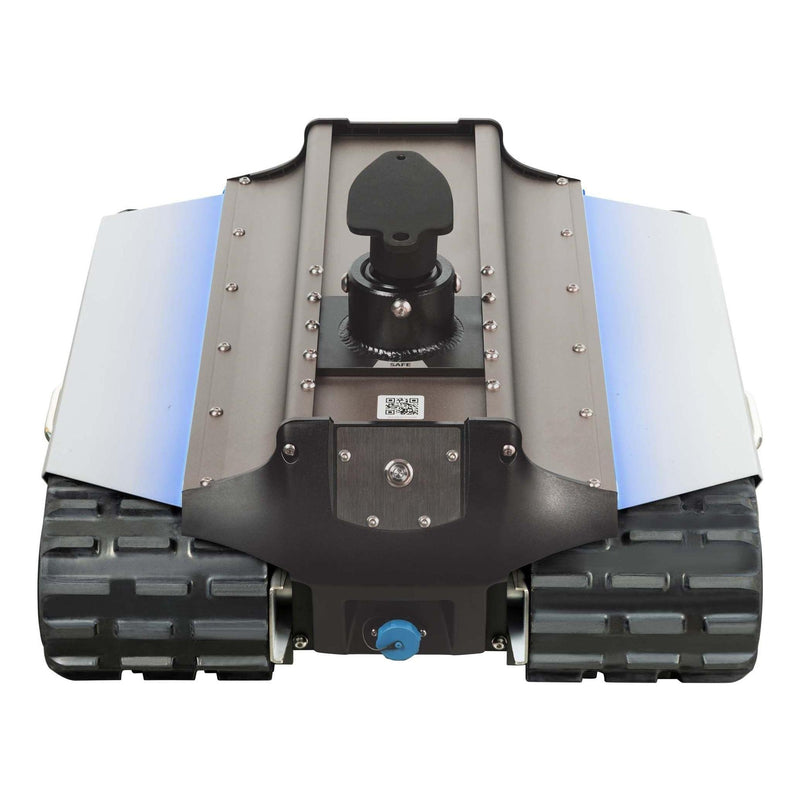

- Manoeuvre caravans, boats and trailers up to 4500kg
- Heavy duty tracks for grass, compact gravel and dirt
- Tackle moderate inclines per spec sheet below

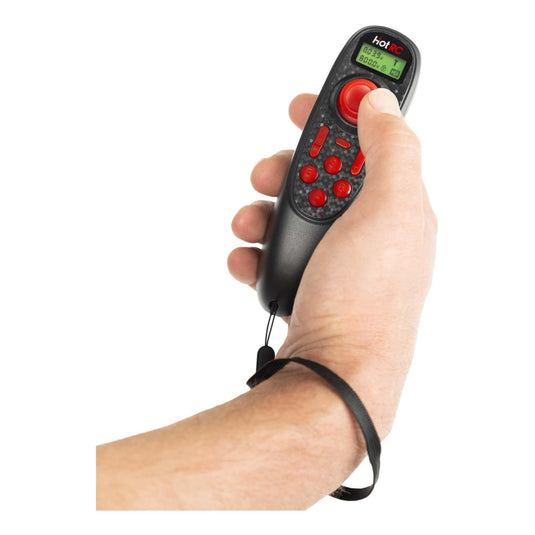

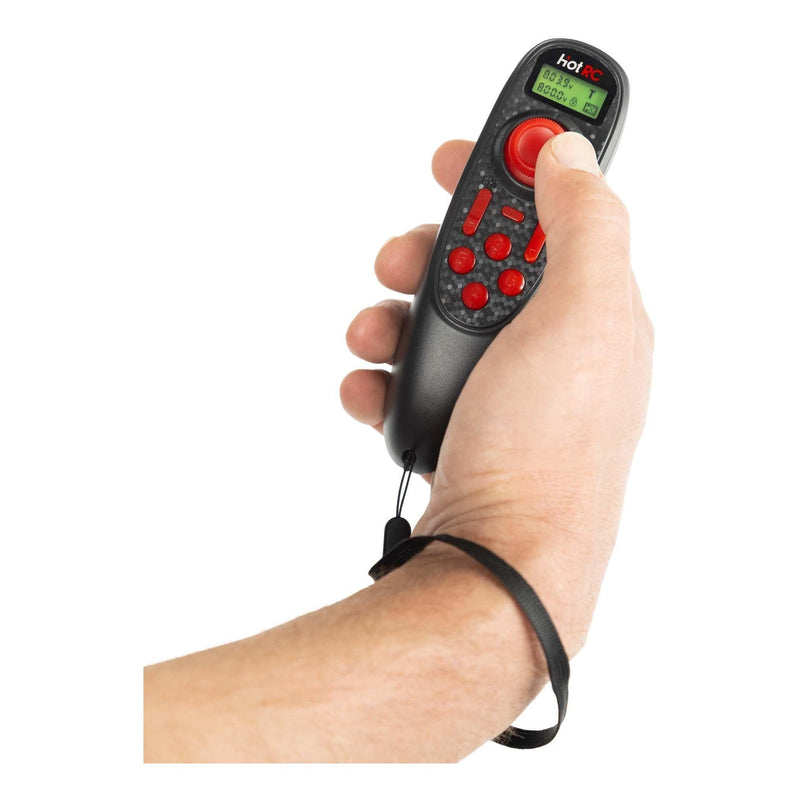

- Joystick remote control operated
- Superior battery; longer life and fast charging
- Mounting bracket included
Includes
- All Terrain Mover
- Mounting Bracket (select either Standard or Universal)
- 16AH Quick Release Lithium Battery & Charger

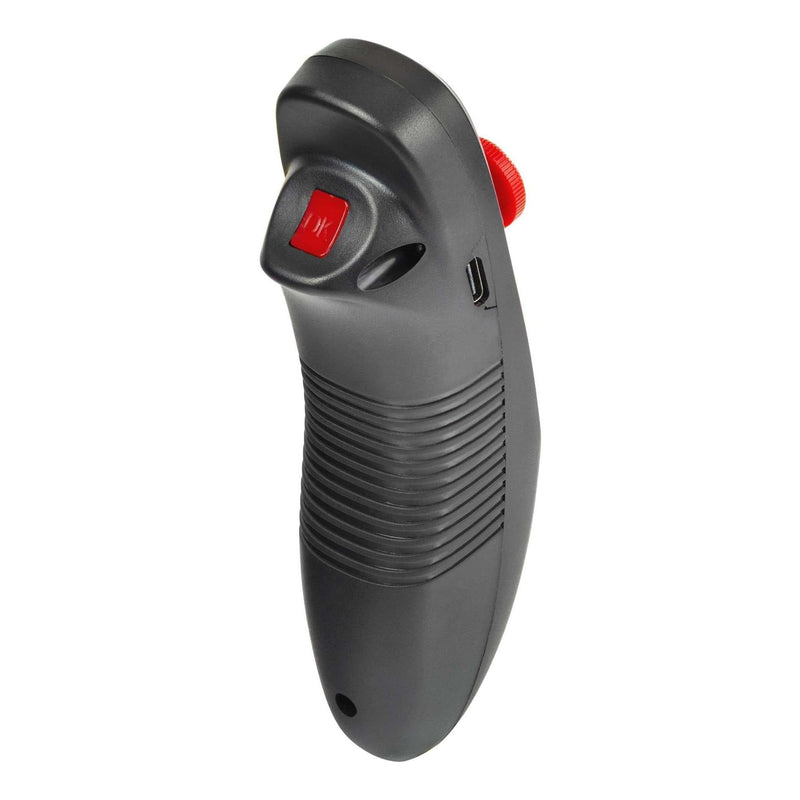

- Joystick Remote Control & USBC Charging Cable
- User Manual
FAQ

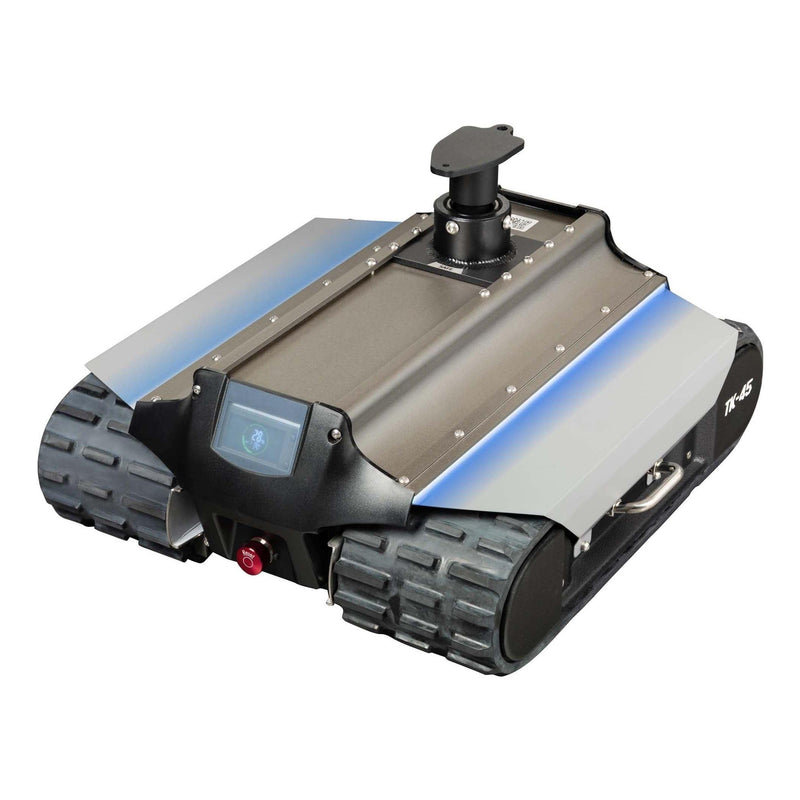

Why choose the All Terrain Mover?
All Terrain Mover offers more capability for complex scenarios and is the preferable choice when;
- Manoeuvring vans, boats and trailers above 3T on inclines of 5 - 10%
- Manoeuvring vans, boars and trailers on softer terrain including grass and compact gravel
The All Terrain Mover by Optitec has a faster battery charge time and superior battery life compared to similar movers in the category. As always, when buying from Optitec, you have a lifetime of service and support.

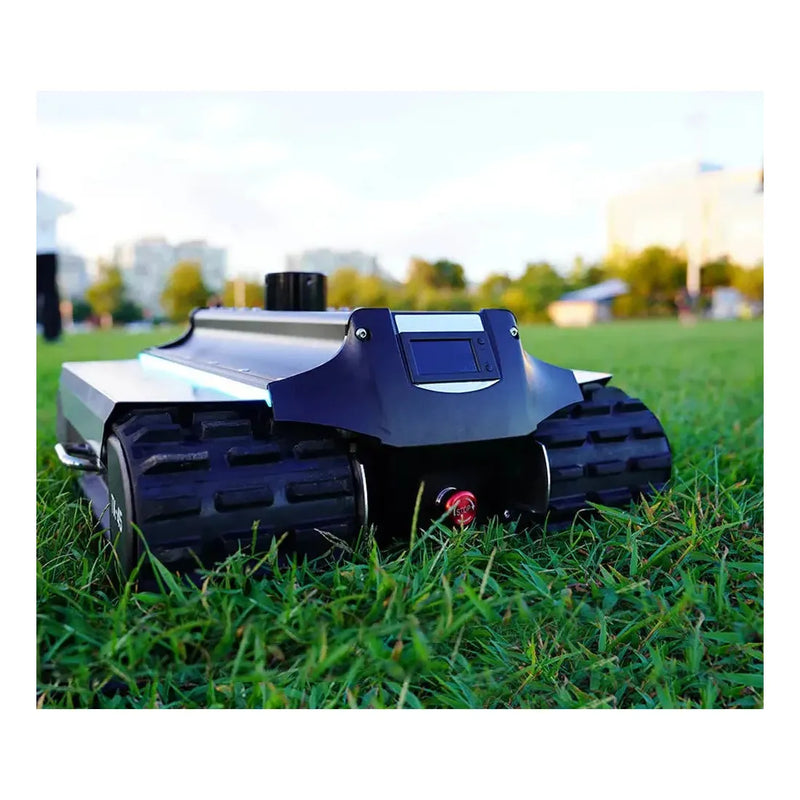

Does the All Terrain Mover work on all surfaces?
The tracks of the All Terrain Mover makes it effective across concrete, grass and compact gravel. If you are predominately moving a van or trailer on a non-concrete surface, then the All Terrain Mover will be your best solution.
However, there are some limitations to its capability on different surfaces;
- When using on wet or very soft grass the turning circle is limited (mover directed within 20 degrees of trailer)
- Very loose or small/fine gravel can enter the interior of the mover and damage the motor. This risk increases when turning on these surfaces and is not recommended.
Does the All Terrain Mover work on inclines?
The weight, size and power of the All Terrain Mover allows it to effectively push trailers up inclines of 5 to10%.
See the All Terrain Mover specifications link below for load and incline limits across various surfaces and please note:
- The load specifications assume the mover is based at bottom end of incline pushing your trailer up. This distributes weight toward the All Terrain Mover and creates the required downforce. Incline capacity is lower if you position the All Terrain Mover at the higher end of incline to pull your trailer up.
- Inclines over 10% are not recommended as the All Terrain Mover is not connected to the van/trailer braking system. While steeper inclines may be feasible with lighter loads, a high degree of caution is recommended.
- When using the All Terrain Mover on inclines it is recommended to limit turning circles to within 20 degrees to protect the track tyres.

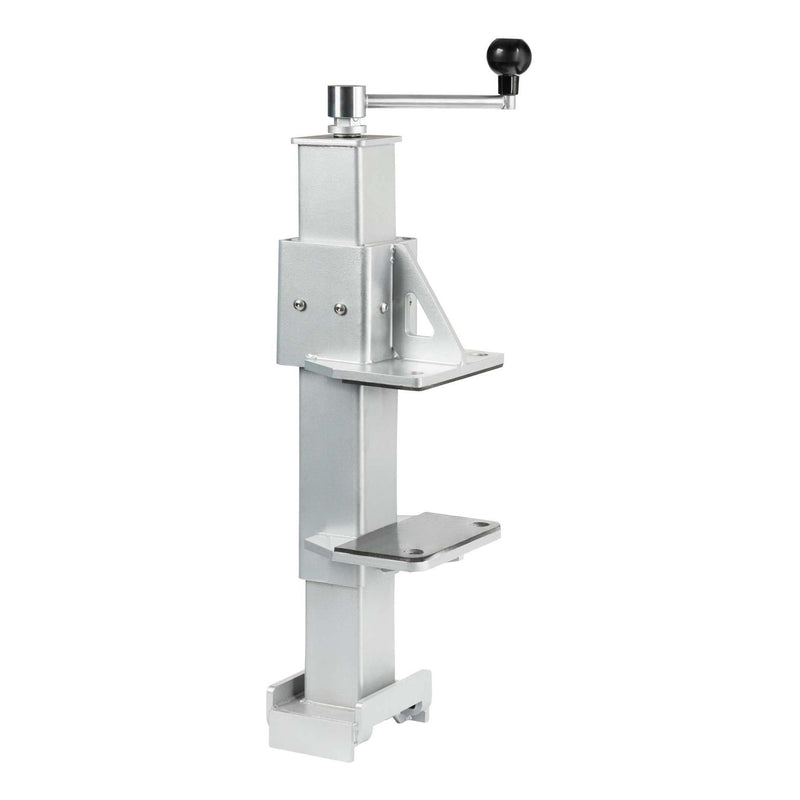

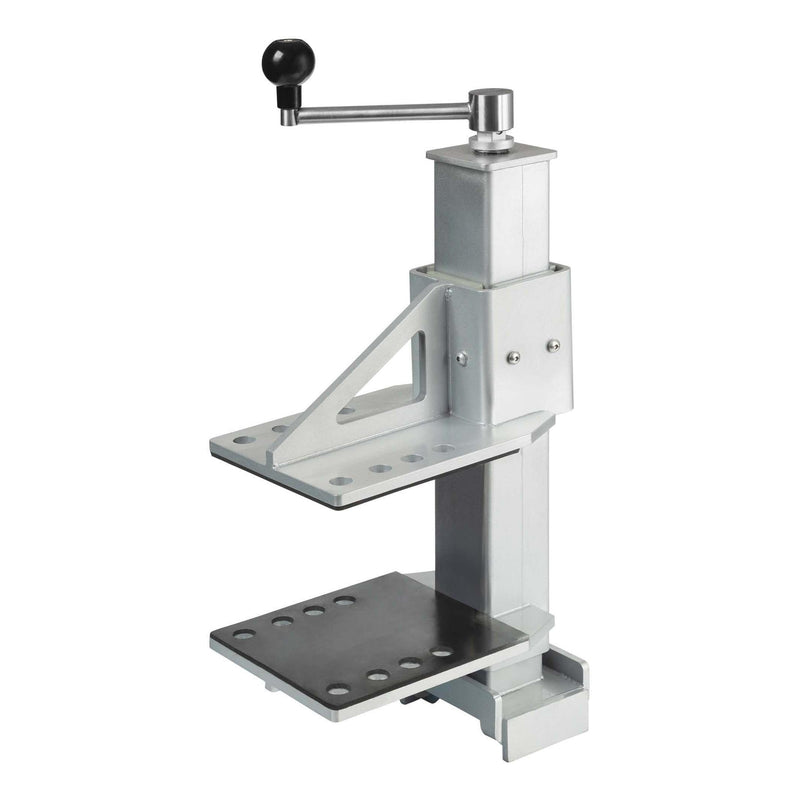

Which mounting bracket option should I choose?

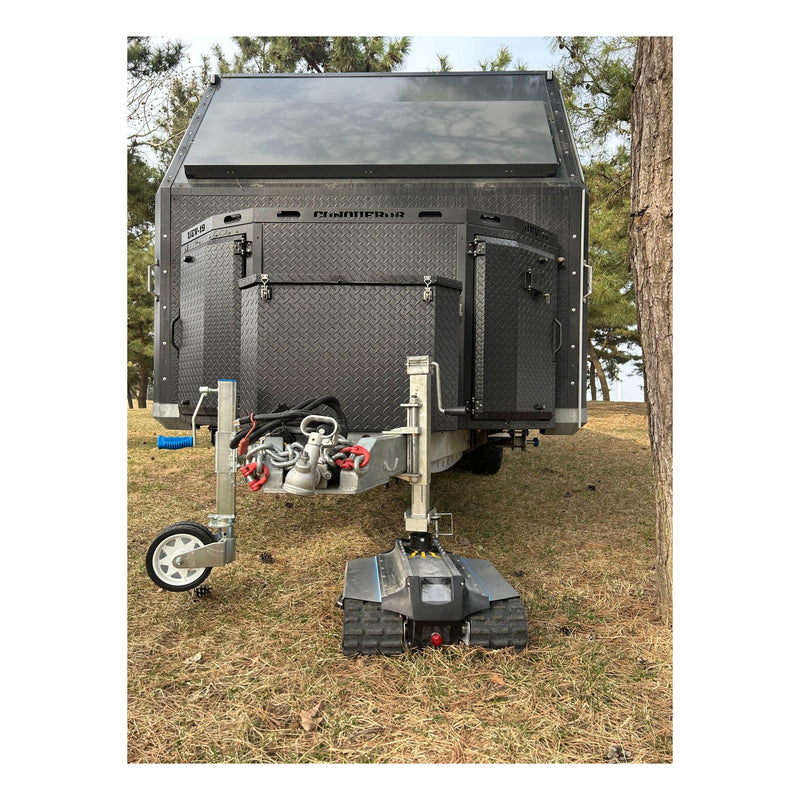

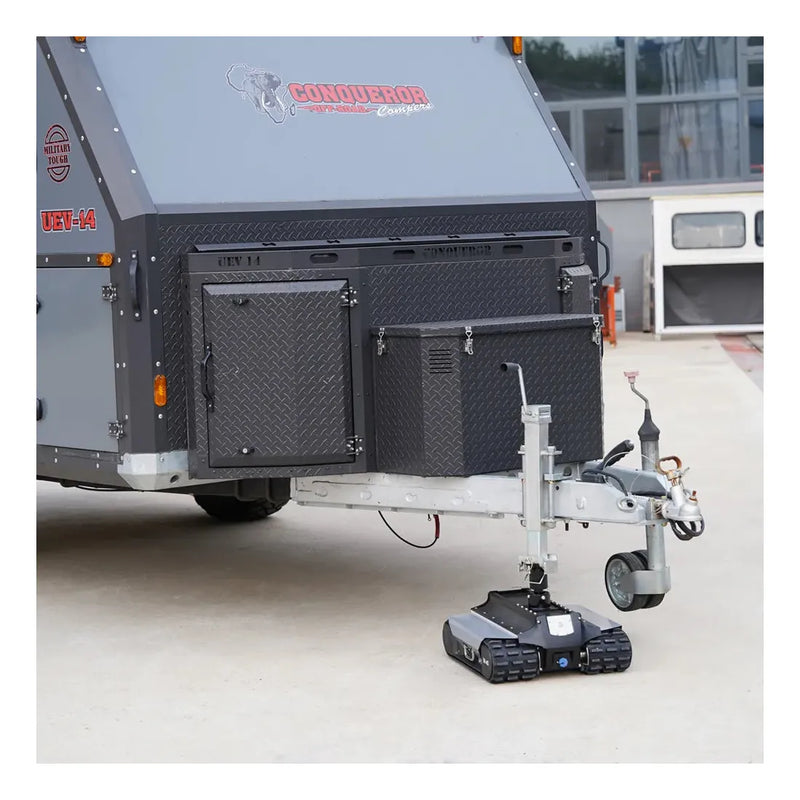

The purchase of the All Terrain Mover includes a mounting bracket to attach the mover to your trailer drawbar. There are two mounting brackets to choose from before you add product to cart:
- Standard Mounting Bracket. Best choice if your drawbar that is 50mm wide. The bracket will adjustable to any drawbar height up to 200mm. It is the appropriate bracket for most caravans.
-
Universal Mounting Bracket. Will fit drawbars of various widths; 50mm, 75mm, 100mm and 130mm. It is height adjustable to fit any height up to 200mm. It is usually appropriate for boats and non-standard trailers.
You may elect to purchase an additional / second bracket for added convenience if you have multiple trailers. You can alternatively elect to purchase a towball hitch attachment, however this attachment provides less stability and cannot be used if operating on inclines.
Unfortunately, there is not currently a drawbar bracket available to fit gooseneck style drawbars or European caravans with Alko Chassis.

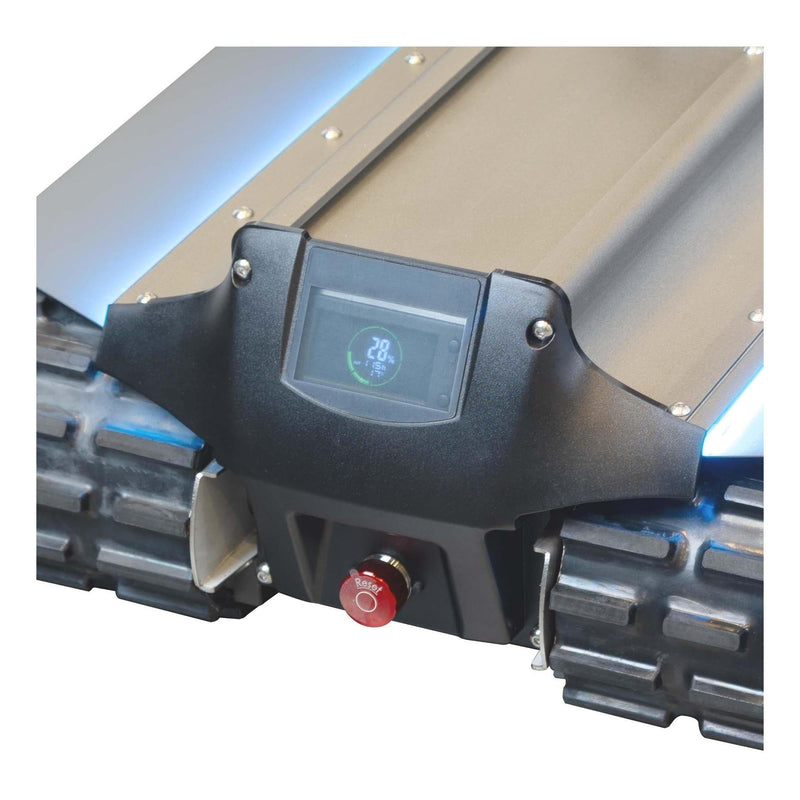

How do I care for the All Terrain Internal Battery?
The All Terrain Mover is fitted with a 16AH Lithium Battery. It is fast charging and long lasting, making All Terrain Mover a superiod choice of movers.
To maintain strong battery health over the life of the mover, the following steps are recommended;
- Charge the battery to full capacity prior to first use (this initial charge period may take 6-8 hours)
- Re-charge the battery after each use
- Never leave the battery on charge for long periods or overnight
- Periodically use and then charge the battery every 1 to 2 months
