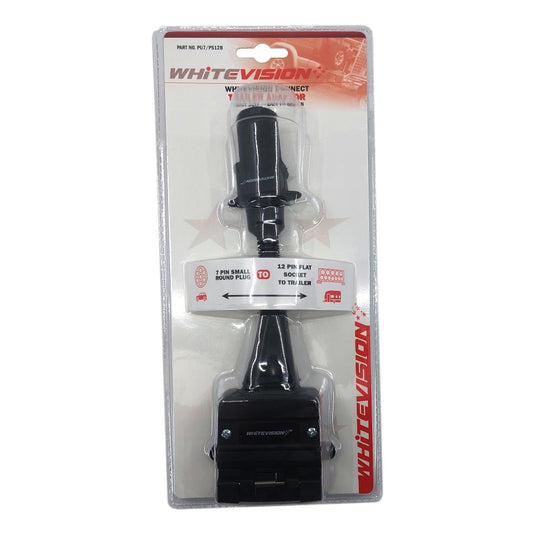

Whitevision 12 to 7 Pin adapter range provides an easy solution to connecting vehicles and trailers or caravans when there is either a 12 or 7 pin plug on each. Connections are wired straight through from the 7 pins to the 12 pins, catering for common lighting and auxiliary circuits - perfect for a short term tow.The range includes a 7 pin plug to a 12 pin socket adapter used for applications when the vehicle only has a 7 pin socket and the towed vehicle has a 12 pin plug. A 12 pin plug to 7 pin socket adapter is also available for applications where the vehicle has a 12 pin socket and the trailer or caravan has only a 7 pin flat plug. This makes the connection much more secure and reliable.
| Applications | •Trailers •Light Trailers •Boat Trailers |
| Voltage | 12V |
| Contact Current | 15 |
| Circuits | Wired 7 to 7 only |
| Material | PA Nylon |
| Pins | Nickel-plated |
| Notes | Pin 8 -12 are not wired or active |
